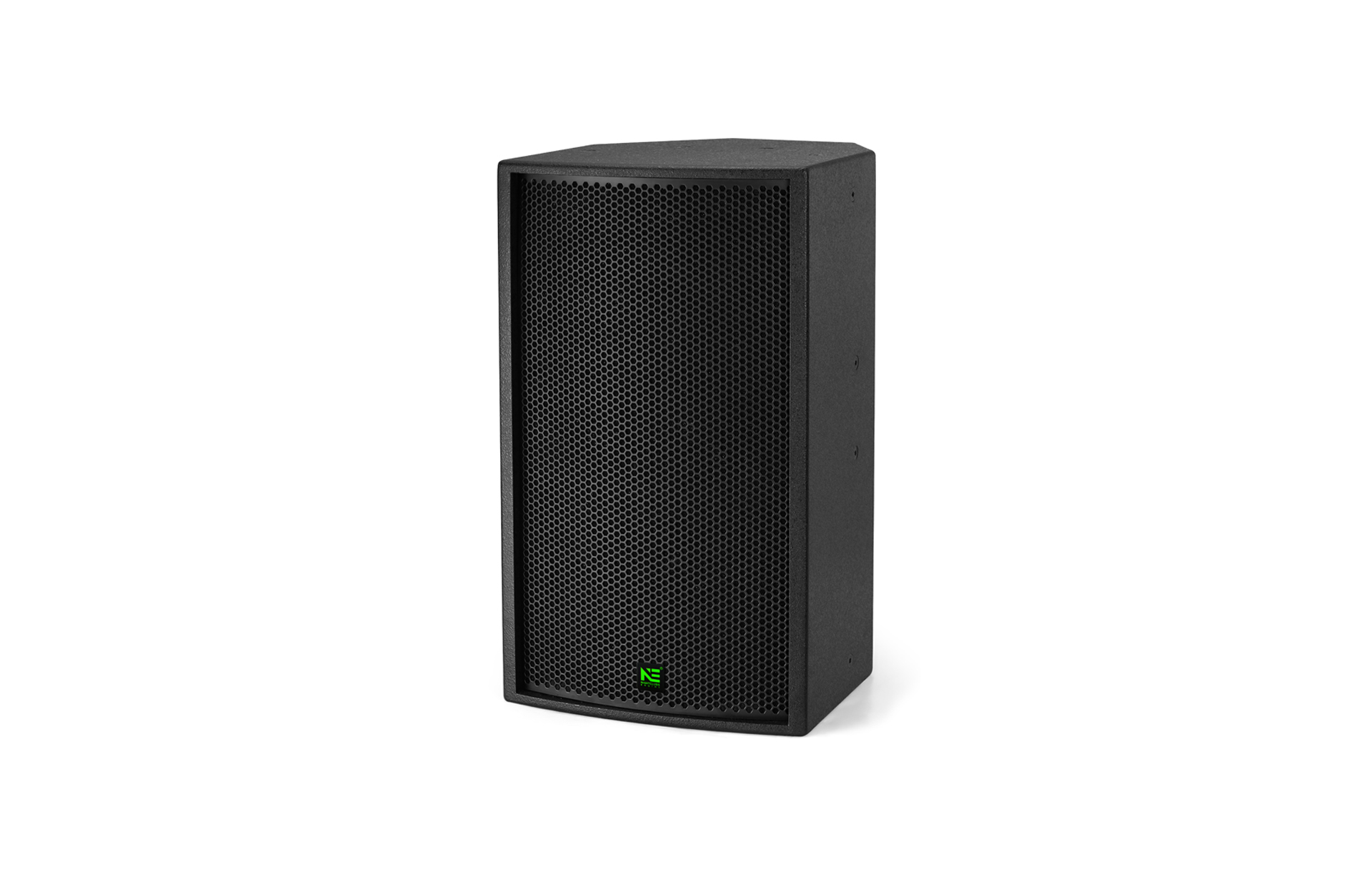

MR系列會議音箱

? 型號 Model:MR108
? 聲學性能Acoustic design:8"Passive loudspeaker,2-way
? 配置Components:HF1×1"(34mm)driver,LF1×8"(50mm)
? 頻率響應Frequenty range:50Hz-20KHz(-10dB)
? 額定功率Power rating (RMS/Peak 10ms):200W/800W
? 靈敏度Sensitivity(1w at 1m):94dB
? 最大聲壓級Maximum SPL1m:118dB(Continuous);120dB(Peak)
? 標稱阻抗Nominal impedance:8Ω
? 覆蓋角度Nominal dispersion angle(HxV): 80°×50°
? 連接器Connections:2×Speakon NL4
? 尺寸Dimensions (H×W×D):505mm×315mm×338mm
? 重量Weight:16.5Kg


? 型號 Model:MR110
? 聲學性能Acoustic design:10"Passive loudspeaker,2-way
? 配置Components:HF1×1"(34mm)driver,LF1×10"(65mm)
? 頻率響應Frequenty range:55Hz-20KHz(-10dB)
? 額定功率Power rating (RMS/Peak 10ms):300W/1200W
? 靈敏度Sensitivity(1w at 1m):95dB
? 最大聲壓級Maximum SPL1m:119dB(Continuous);122dB(Peak)
? 標稱阻抗Nominal impedance:8Ω
? 覆蓋角度Nominal dispersion angle(HxV): 80°×50°
? 連接器Connections:2×Speakon NL4
? 尺寸Dimensions (H×W×D):505mm×315mm×338mm
? 重量Weight:17.5Kg


? 型號 Model:MR112
? 聲學性能Acoustic design:12"Passive loudspeaker,2-way
? 配置Components:HF1×1"(34mm)driver,LF1×12"(65mm)
? 頻率響應Frequenty range:50Hz-18KHz(-10dB)
? 額定功率Power rating (RMS/Peak 10ms):300W/1200W
? 靈敏度Sensitivity(1w at 1m):96dB
? 最大聲壓級Maximum SPL1m:120dB(Continuous);124dB(Peak)
? 標稱阻抗Nominal impedance:8Ω
? 覆蓋角度Nominal dispersion angle(HxV): 80°×50°
? 連接器Connections:2×Speakon NL4
? 尺寸Dimensions (H×W×D):505mm×315mm×338mm
? 重量Weight:18.5Kg

應用領域 Applications：教學，會議室，多功能廳，小型宴會廳等。
